Select	Part Number	V_CES / V_RRM	I_C / I_F	Configuration	Housing	I_{FSM tp₁}	Technology	V_Isol	L_sCE / L_sAC

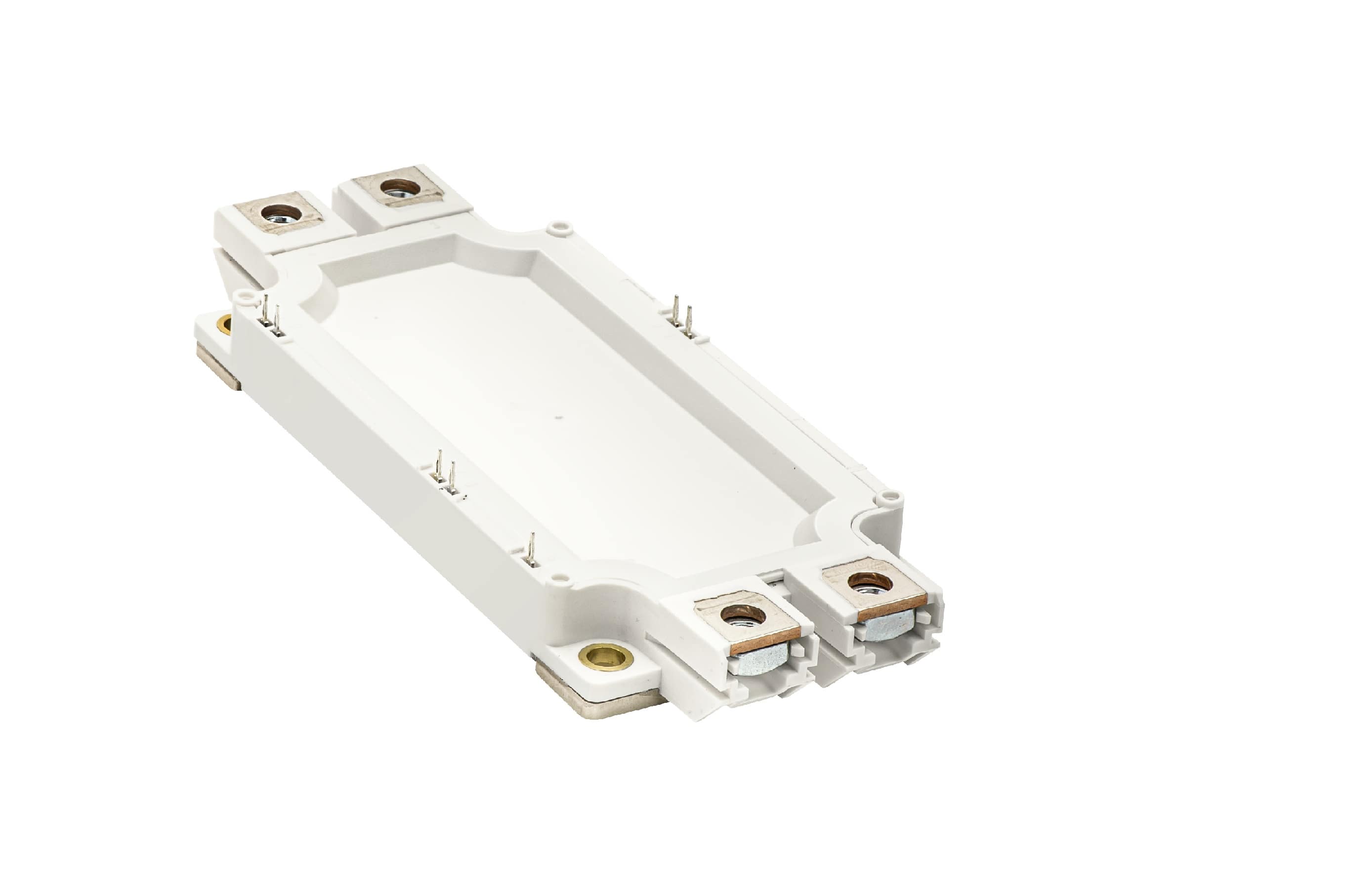

+	5SNG0500R170501	1700	500	Phase leg +T	LoPak W = 62 mmL = 152 mmH = 20.8 mmw = 62 mml = 122 mm		SPT++	4000	25e-9

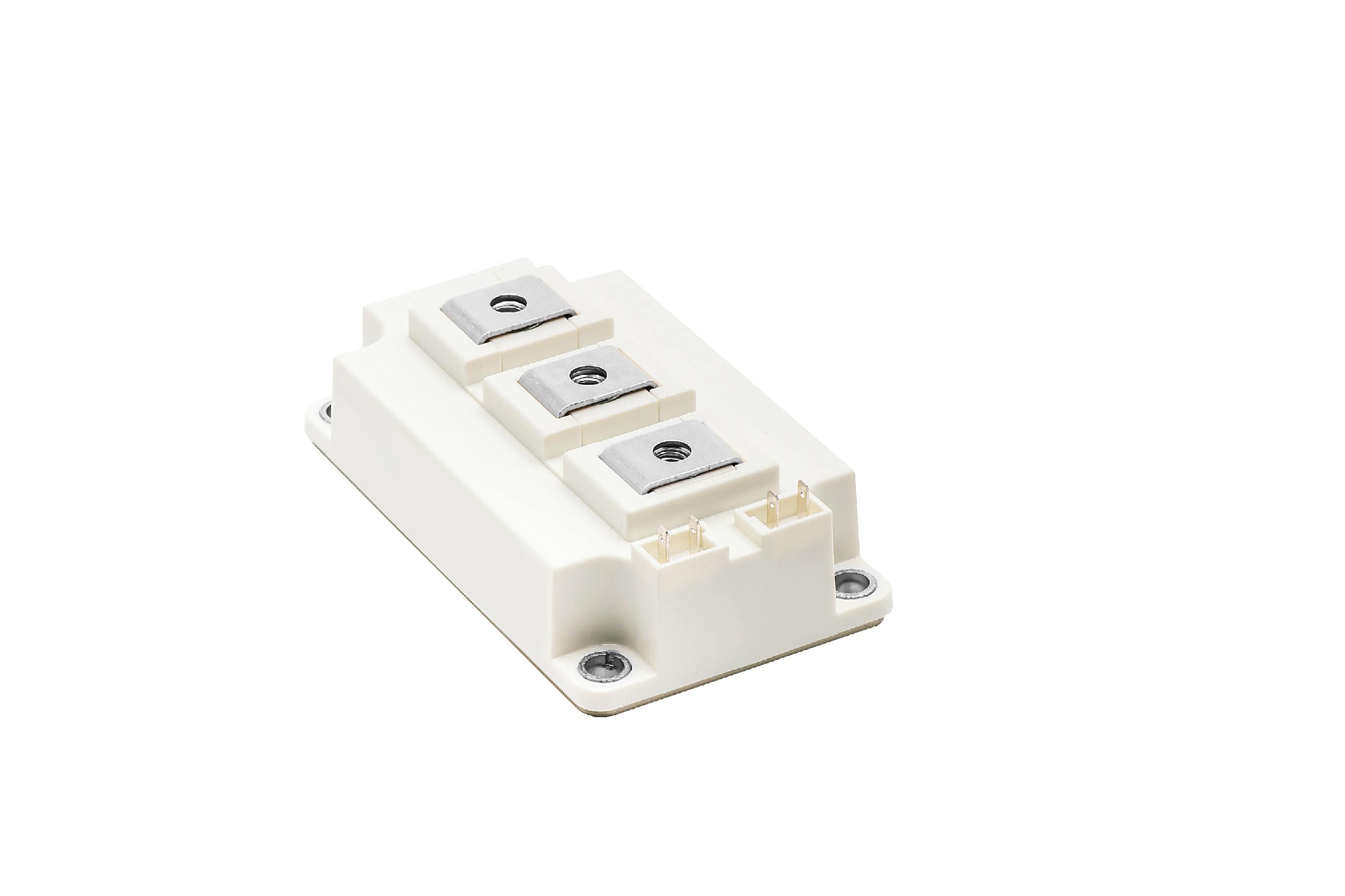

+	5SNG0300Q170300	1700	300	Phase leg	62Pak W = 61.4 mmL = 106.4 mmH = 30.8 mmw = 61.4 mml = 106.4 mm		SPT++	4000	20e-9

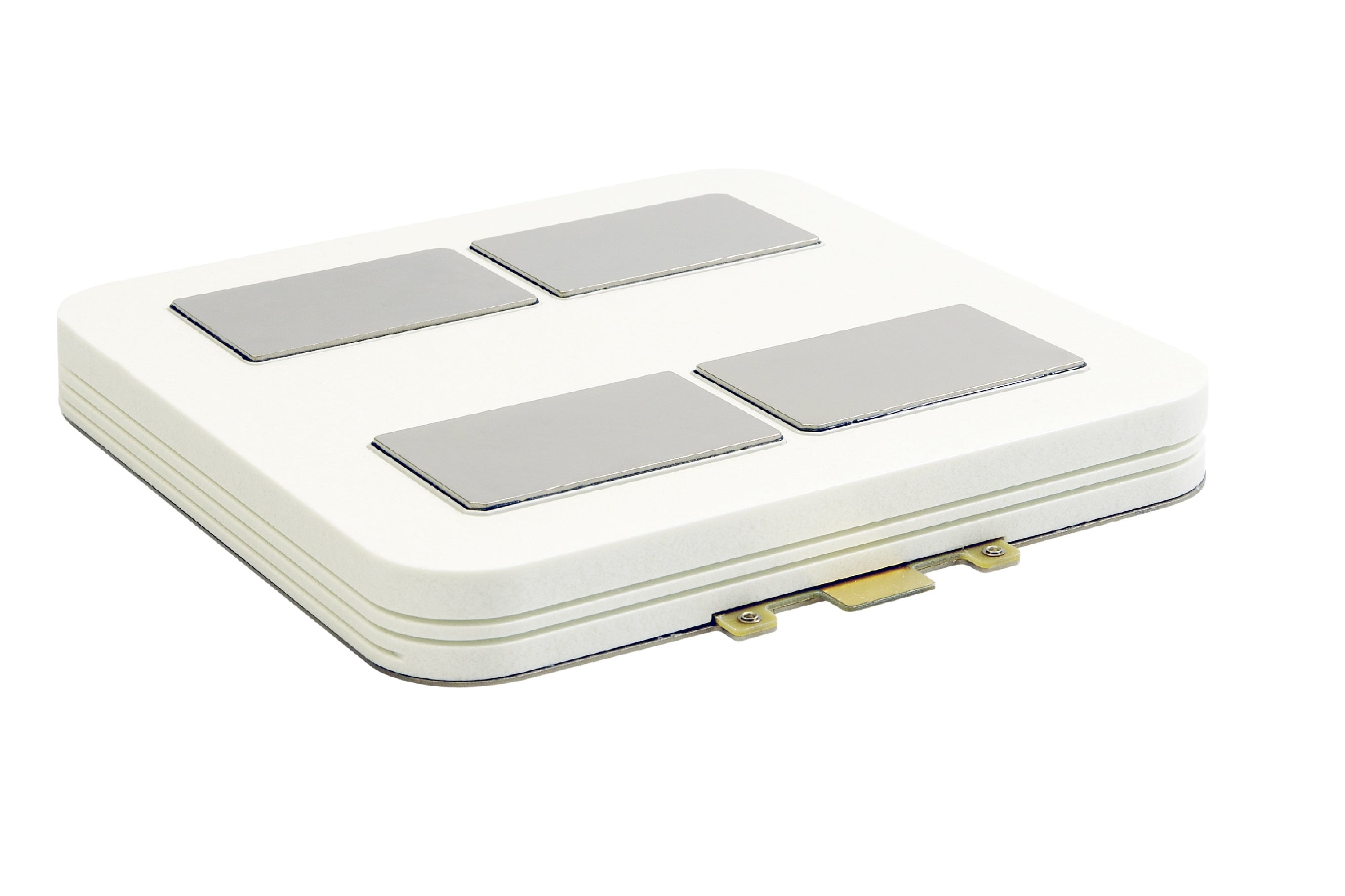

+	5SNA2000K452300	4500	2000	1 x IGBT	StakPak K W = 235.1 mmL = 237.3 mmH = 28.7 mmw = 235.1 mml = 237.3 mm		SPT+
+	5SNA1800E330400	3300	1800	1 x IGBT	HiPak2 LV W = 140 mmL = 190 mmH = 38 mmw = 138 mml = 188 mm		TSPT+	6000	8e-9
+	5SNG0900R120501	1200	900	Phase leg +T	LoPak W = 62 mmL = 152 mmH = 20.8 mmw = 62 mml = 122 mm		TFP	4000	20e-9
+	5SNG0450R170301	1700	450	Phase leg +T	LoPak W = 62 mmL = 152 mmH = 20.8 mmw = 62 mml = 122 mm		SPT++	4000	25e-9

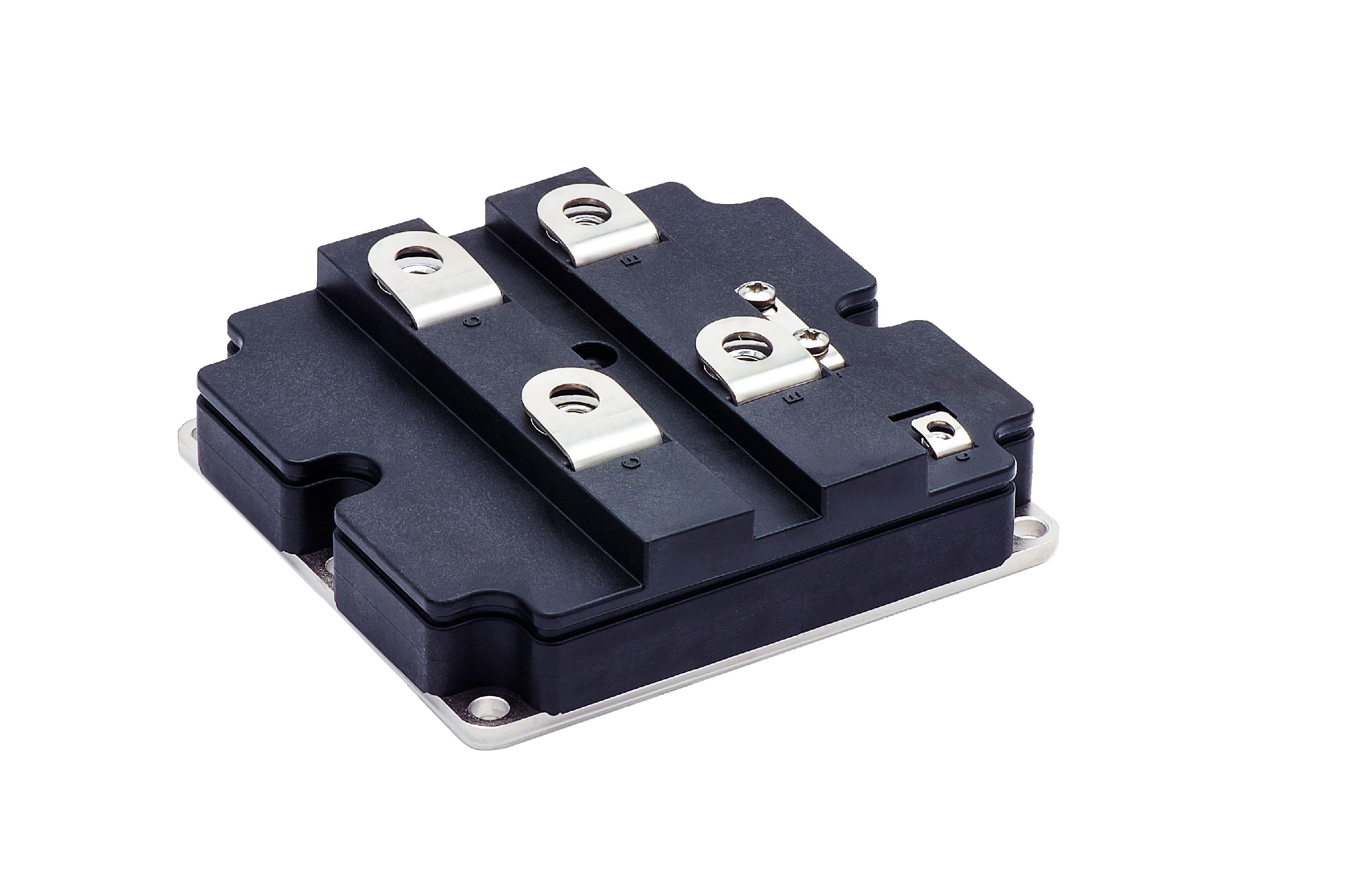

+	5SNA1600N170300	1700	1600	1 x IGBT	HiPak1 LV 40mm W = 130 mmL = 140 mmH = 38 mmw = 128 mml = 138 mm		SPT+	4000	12e-9

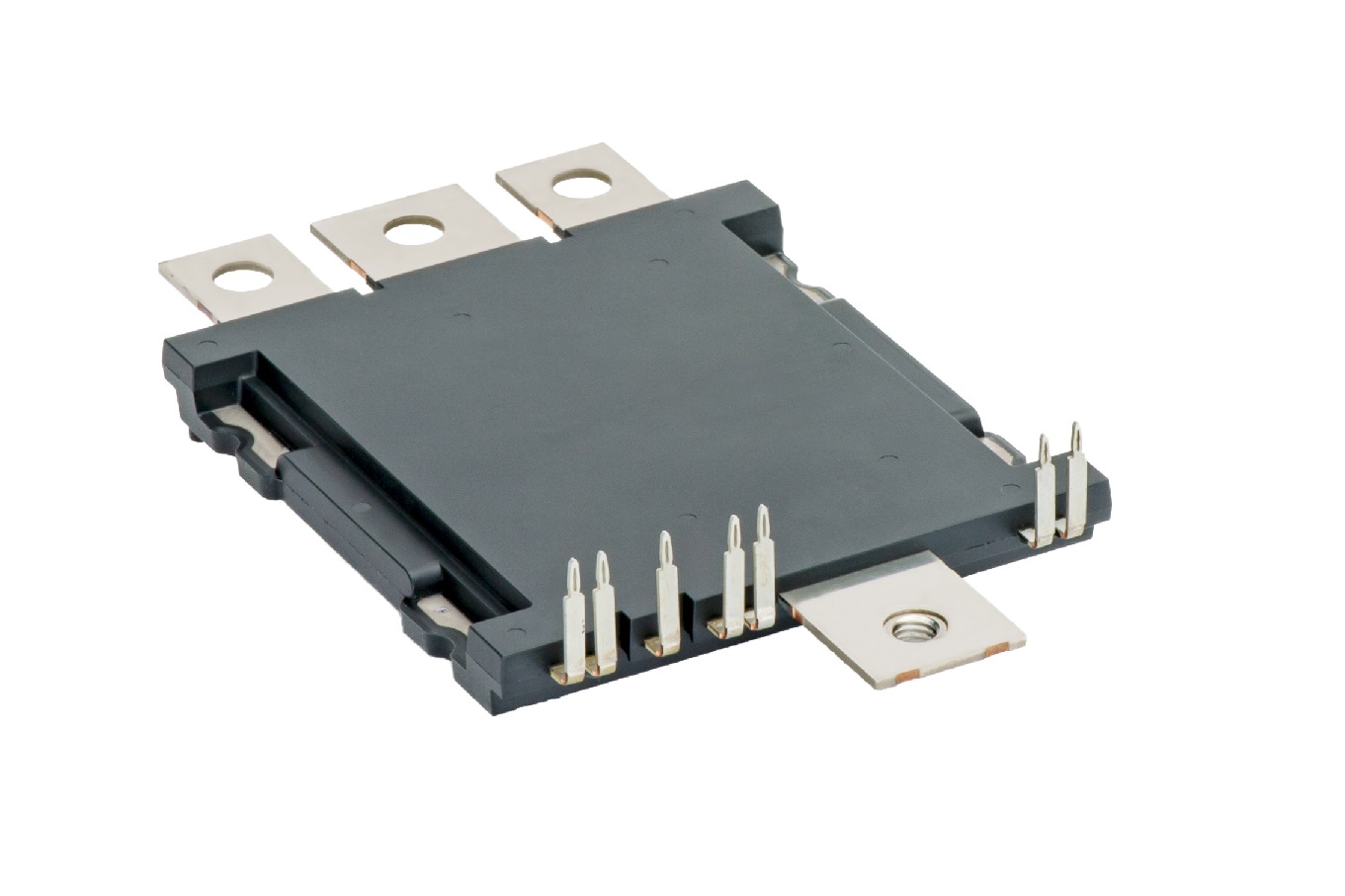

+	5SFG1150B12x001	1200	740	SiC Phase leg +T	RoadPak B W = 70 mmL = 110 mmH = 30.5 mmw = 48.2 mml = 42.6 mm		SiC Gen3+	3300	5e-9
+	5SNE2400E170300	1700	2400	Chopper	HiPak2 LV W = 140 mmL = 190 mmH = 38 mmw = 138 mml = 188 mm		SPT+	4000	12e-9
+	5SNA1500E330305	3300	1500	1 x IGBT	HiPak2 LV W = 140 mmL = 190 mmH = 38 mmw = 138 mml = 188 mm		SPT+	6000	8e-9

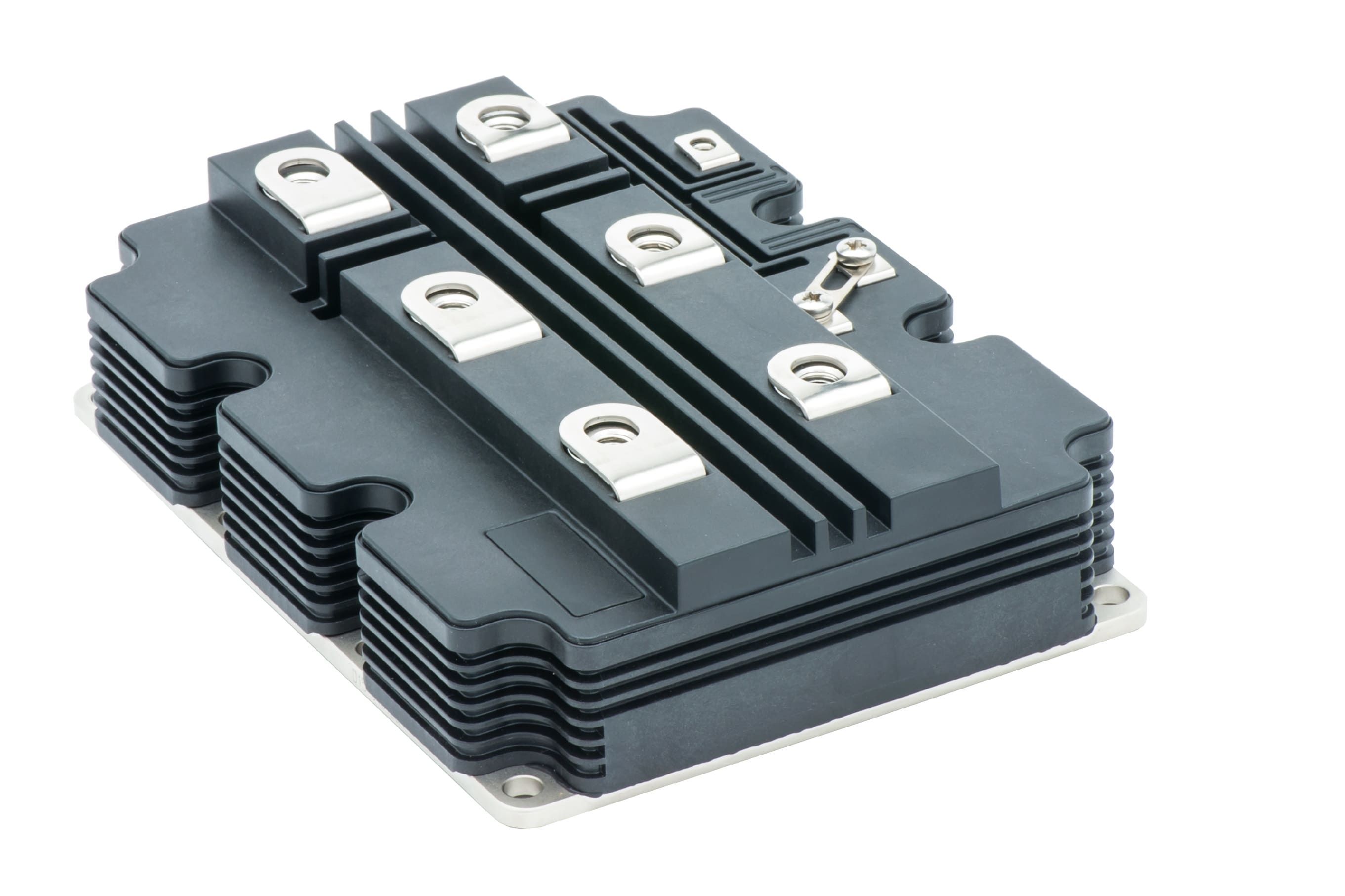

+	5SNA1800G330400	3300	1800	1 x IGBT	HiPak2 HV W = 140 mmL = 190 mmH = 48 mmw = 138 mml = 188 mm		TSPT+	10200	18e-9
+	5SNA1200E330100	3300	1200	1 x IGBT	HiPak2 LV W = 140 mmL = 190 mmH = 38 mmw = 138 mml = 188 mm		SPT	6000	10e-9
+	5SNG0600R120591	1200	600	Phase leg +T	LoPak W = 62 mmL = 152 mmH = 20.8 mmw = 62 mml = 122 mm		TFP	4000	20e-9
+	5SNA2400E170305	1700	2400	1 x IGBT	HiPak2 LV W = 140 mmL = 190 mmH = 38 mmw = 138 mml = 188 mm		SPT+	4000	8e-9
+	5SNA3600E170300	1700	3600	1 x IGBT	HiPak2 LV W = 140 mmL = 190 mmH = 38 mmw = 138 mml = 188 mm		SPT+	4000	8e-9
+	5SNA0750G650300	6500	750	1 x IGBT	HiPak2 HV W = 140 mmL = 190 mmH = 48 mmw = 138 mml = 188 mm		SPT+	10200	18e-9
+	5SNE1000E330300	3300	1000	Chopper	HiPak2 LV W = 140 mmL = 190 mmH = 38 mmw = 138 mml = 188 mm		SPT+	6000	12e-9
+	5SNG1250X170500	1700	1250	Phase leg +T	LinPak W = 100 mmL = 140 mmH = 38 mmw = 100 mml = 140 mm		TSPT	4000	10e-9

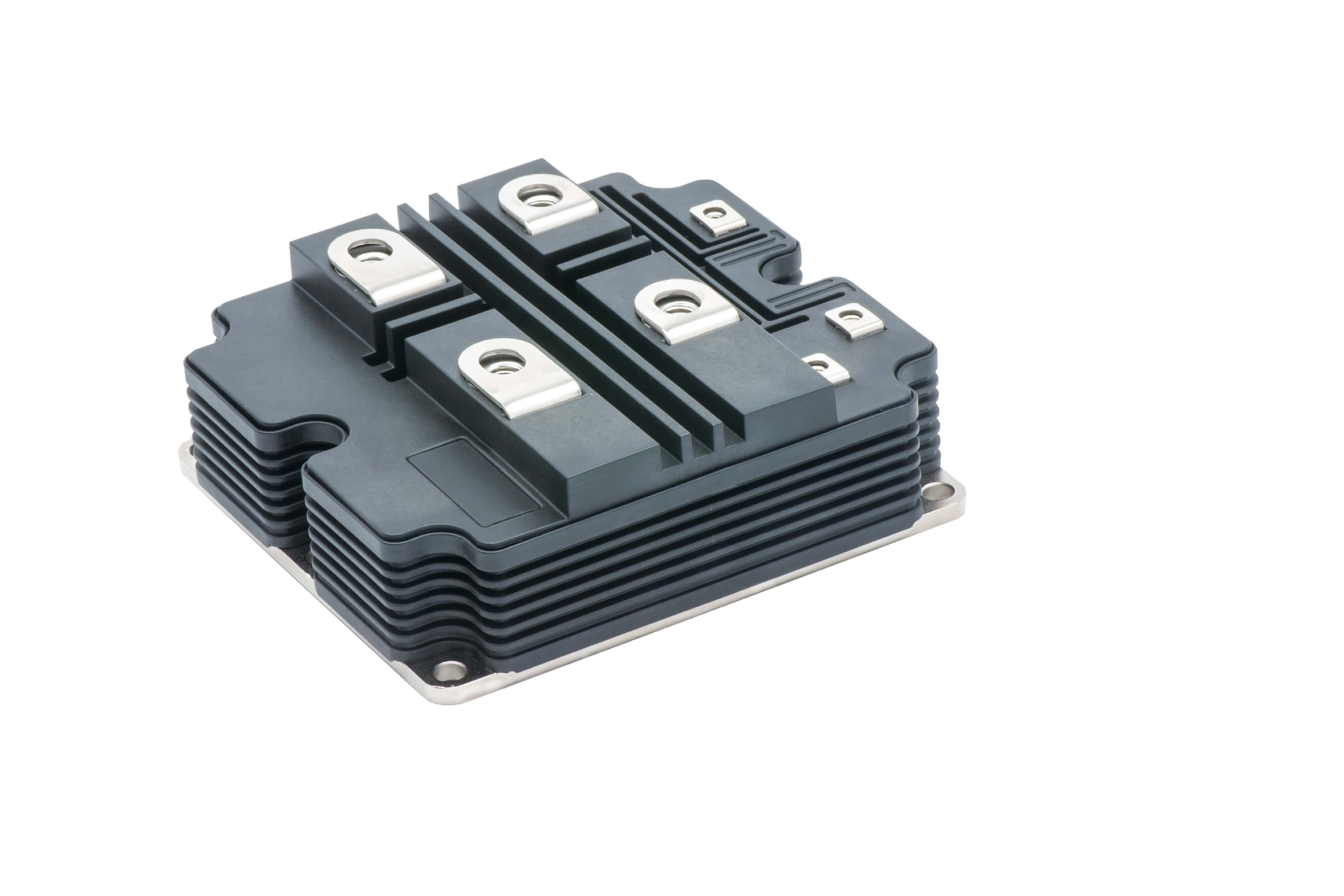

+	5SNA0500J650300	6500	500	1 x IGBT	HiPak1 HV W = 130 mmL = 140 mmH = 48 mmw = 128 mml = 138 mm		SPT+	10200	27e-9
+	5SNA0400J650100	6500	400	1 x IGBT	HiPak1 HV W = 130 mmL = 140 mmH = 48 mmw = 128 mml = 138 mm		SPT	10200	20e-9

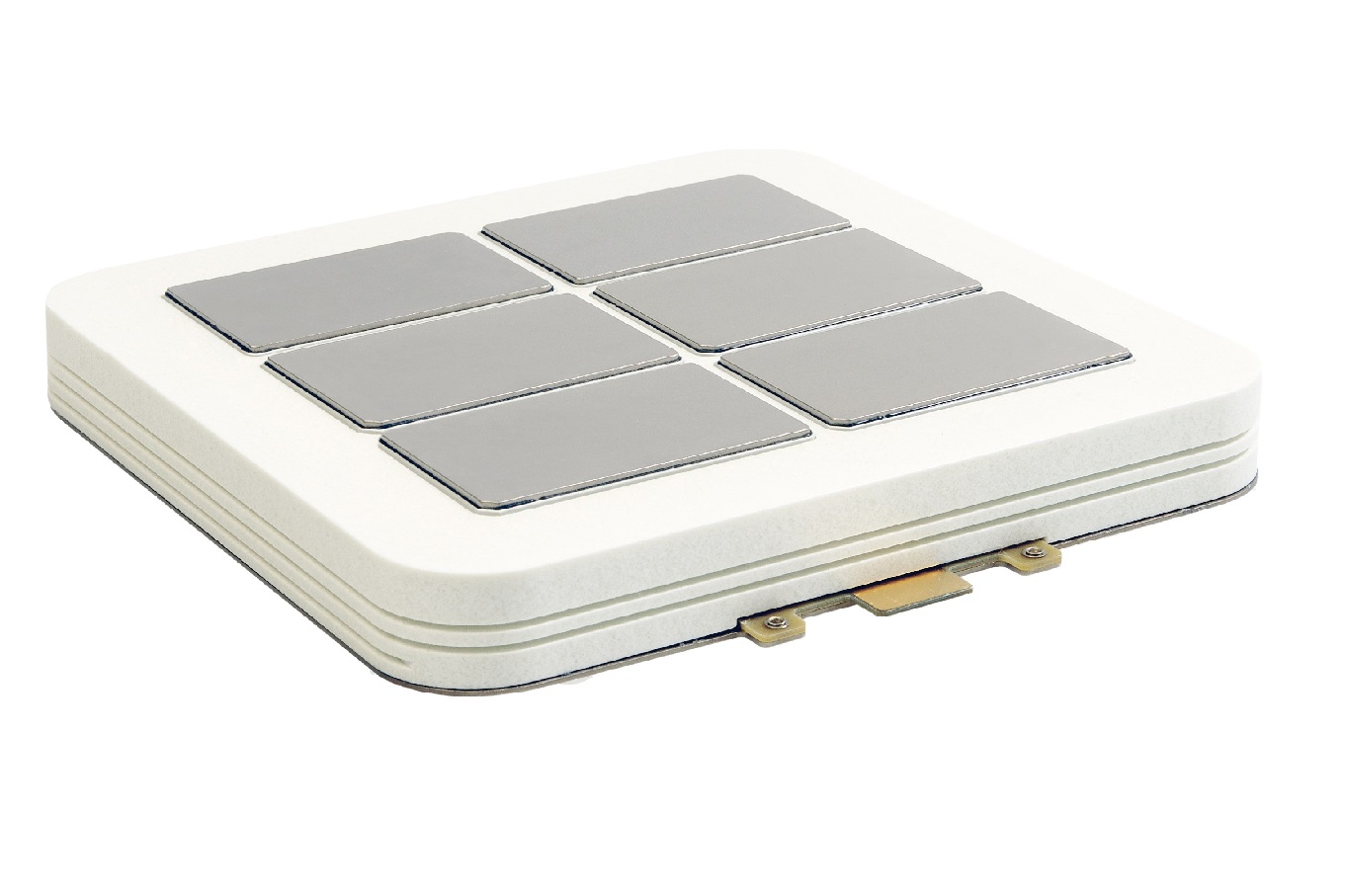

+	5SMA2500L450300	4500	2500	1 x IGBT, 0 x Diode	StakPak L W = 235 mmL = 237 mmH = 31.1 mmw = 235 mml = 237 mm		SPT++
+	5SNE0800E330100	3300	800	Chopper	HiPak2 LV W = 140 mmL = 190 mmH = 38 mmw = 138 mml = 188 mm		SPT	6000	15e-9

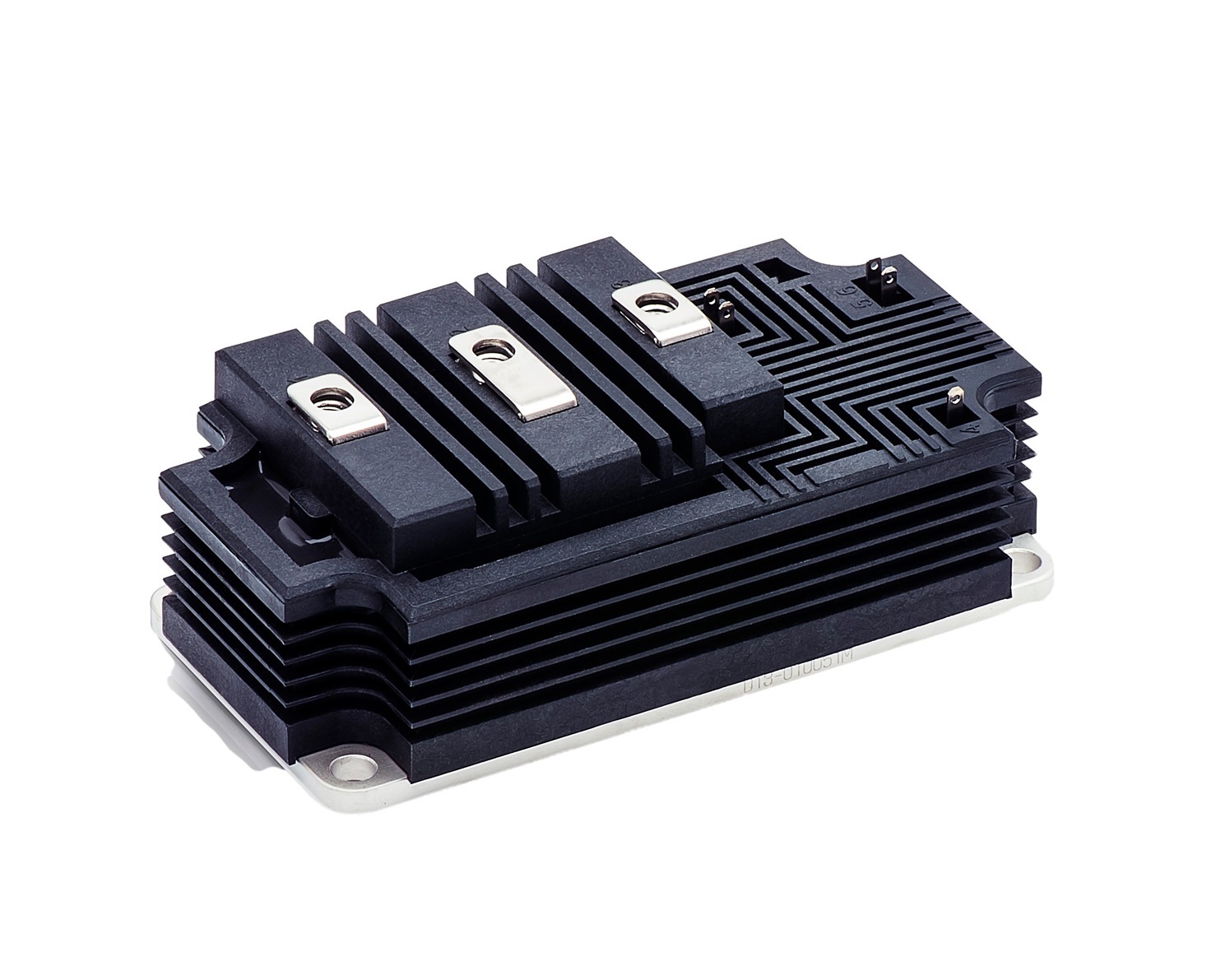

+	5SNG0250P330305	3300	250	Phase leg	HiPak 0 W = 72 mmL = 140 mmH = 48 mmw = 70 mml = 138 mm		SPT+	6000	125e-9
+	5SNG0750R170501	1700	750	Phase leg +T	LoPak W = 62 mmL = 152 mmH = 20.8 mmw = 62 mml = 122 mm		SPT++	4000	25e-9
+	5SNG0450R170391	1700	450	Phase leg +T	LoPak W = 62 mmL = 152 mmH = 20.8 mmw = 62 mml = 122 mm		SPT++	4000	25e-9
+	5SFG0480X330100	3300	480	SiC Phase leg +T	LinPak W = 100 mmL = 140 mmH = 38 mmw = 100 mml = 140 mm		SiC Gen3+	6000
+	5SNA2000K450300	4500	2000	1 x IGBT	StakPak K W = 235.1 mmL = 237.3 mmH = 28.7 mmw = 235.1 mml = 237.3 mm		SPT+
+	5SNA2000K451300	4500	2000	1 x IGBT	StakPak K W = 235.1 mmL = 237.3 mmH = 28.7 mmw = 235.1 mml = 237.3 mm		SPT+
+	5SMA5000L450300	4500	5000	1 x IGBT, 0 x Diode	StakPak L W = 235 mmL = 237 mmH = 31.1 mmw = 235 mml = 237 mm		SPT++
+	5SNA1000N330300	3300	1000	1 x IGBT	HiPak1 LV 40mm W = 130 mmL = 140 mmH = 38 mmw = 128 mml = 138 mm		SPT+	6000	12e-9
+	5SNA0600G650100	6500	600	1 x IGBT	HiPak2 HV W = 140 mmL = 190 mmH = 48 mmw = 138 mml = 188 mm		SPT	10200	18e-9
+	5SNA1200G330100	3300	1200	1 x IGBT	HiPak2 HV W = 140 mmL = 190 mmH = 48 mmw = 138 mml = 188 mm		SPT	10200	18e-9
+	5SNA1200G450300	4500	1200	1 x IGBT	HiPak2 HV W = 140 mmL = 190 mmH = 48 mmw = 138 mml = 188 mm		SPT+	7400	18e-9
+	5SNA0800N330100	3300	800	1 x IGBT	HiPak1 LV 40mm W = 130 mmL = 140 mmH = 38 mmw = 128 mml = 138 mm		SPT	6000	15e-9
+	5SNA1200G450350	4500	1200	1 x IGBT	HiPak2 HV W = 140 mmL = 190 mmH = 48 mmw = 138 mml = 188 mm		SPT+	10200	18e-9
+	5SFG0980B12X001	1200	625	SiC Phase leg +T	RoadPak B W = 70 mmL = 110 mmH = 30.5 mmw = 48.2 mml = 42.6 mm	1350	SiC Gen3+	3300	5e-9
+	5SNA2400N170300	1700	2400	1 x IGBT	HiPak1 LV 40mm W = 130 mmL = 140 mmH = 38 mmw = 128 mml = 138 mm		SPT+	4000	12e-9
+	5SNA1300K450300	4500	1300	1 x IGBT	StakPak K W = 235.1 mmL = 237.3 mmH = 28.7 mmw = 235.1 mml = 237.3 mm		SPT+
+	5SNG0600R120501	1200	600	Phase leg +T	LoPak W = 62 mmL = 152 mmH = 20.8 mmw = 62 mml = 122 mm		TFP	4000	20e-9
+	5SNG0900R120591	1200	900	Phase leg +T	LoPak W = 62 mmL = 152 mmH = 20.8 mmw = 62 mml = 122 mm		TFP	4000	20e-9
+	5SNA3000K452300	4500	3000	1 x IGBT	StakPak K W = 235.1 mmL = 237.3 mmH = 28.7 mmw = 235.1 mml = 237.3 mm		SPT+
+	5SNA1000J450300	4500	1000	1 x IGBT	HiPak1 HV W = 130 mmL = 140 mmH = 48 mmw = 128 mml = 138 mm		SPT++	7400	27e-9
+	5SNA1000G650300	6500	1000	1 x IGBT	HiPak2 HV W = 140 mmL = 190 mmH = 48 mmw = 138 mml = 188 mm		SPT++	10200	18e-9
+	5SNA1500G450300	4500	1500	1 x IGBT	HiPak2 HV W = 140 mmL = 190 mmH = 48 mmw = 138 mml = 188 mm		SPT++	7400	18e-9
+	5SNE0800G450300	4500	800	Chopper	HiPak2 HV W = 140 mmL = 190 mmH = 48 mmw = 138 mml = 188 mm		SPT+	10200	27e-9
+	5SNG0450X330300	3300	450	Phase leg +T	LinPak W = 100 mmL = 140 mmH = 38 mmw = 100 mml = 140 mm		SPT+	6000	10e-9

Select	Part Number	V_DRM / V_RRM	I_{T(AV)M T_C1} / I_{F(AV) T_C1}	Configuration	Housing	I_{TSM VR t_p1}

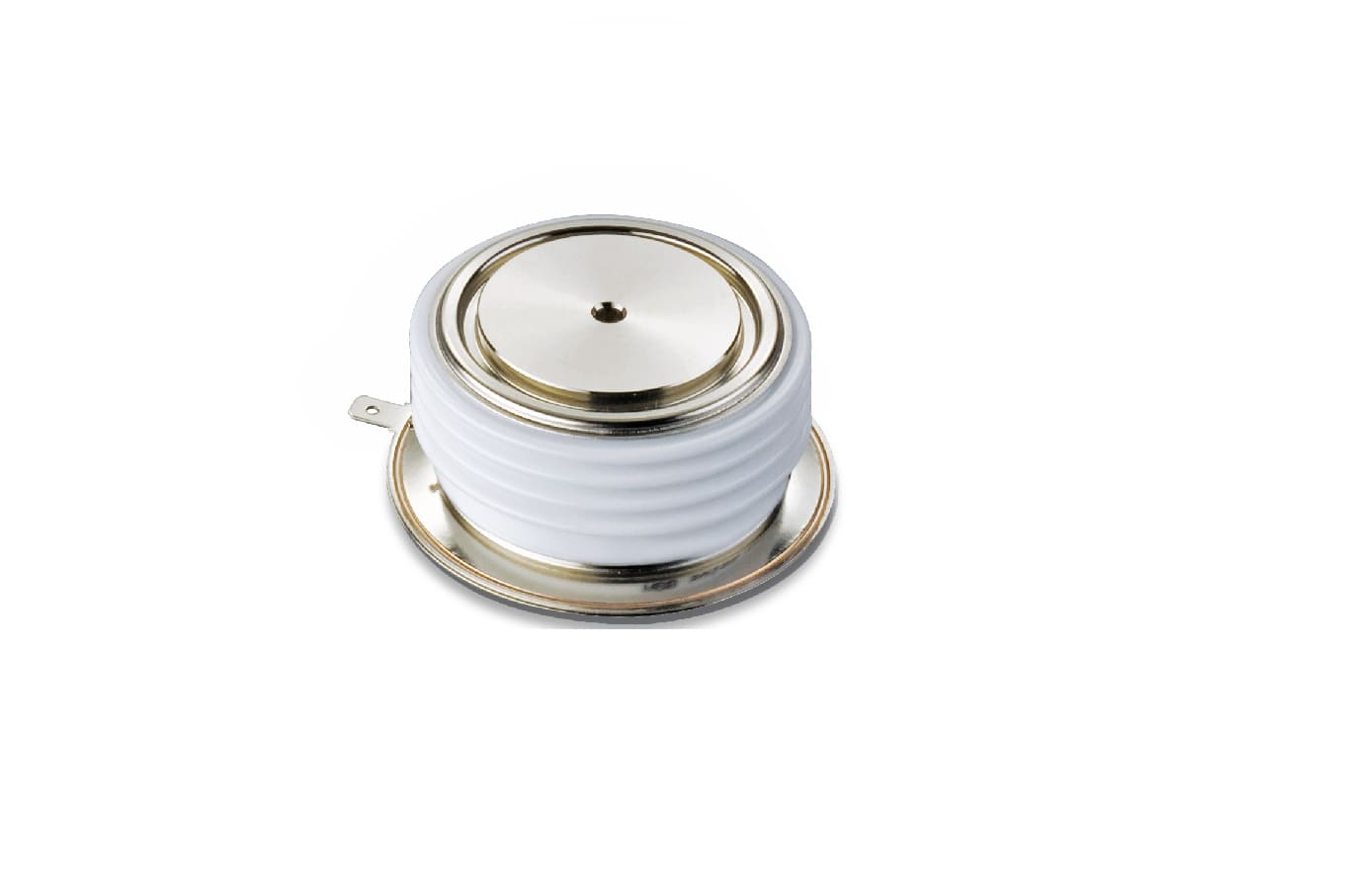

+	5STP04D5200	5200	420	PCT	D D = 60 mmH = 26 mmd = 34 mm	4.8e3
+	5STP18M6500	6500	1830	PCT	M D = 120 mmH = 35 mmd = 78 mm	29.5e3

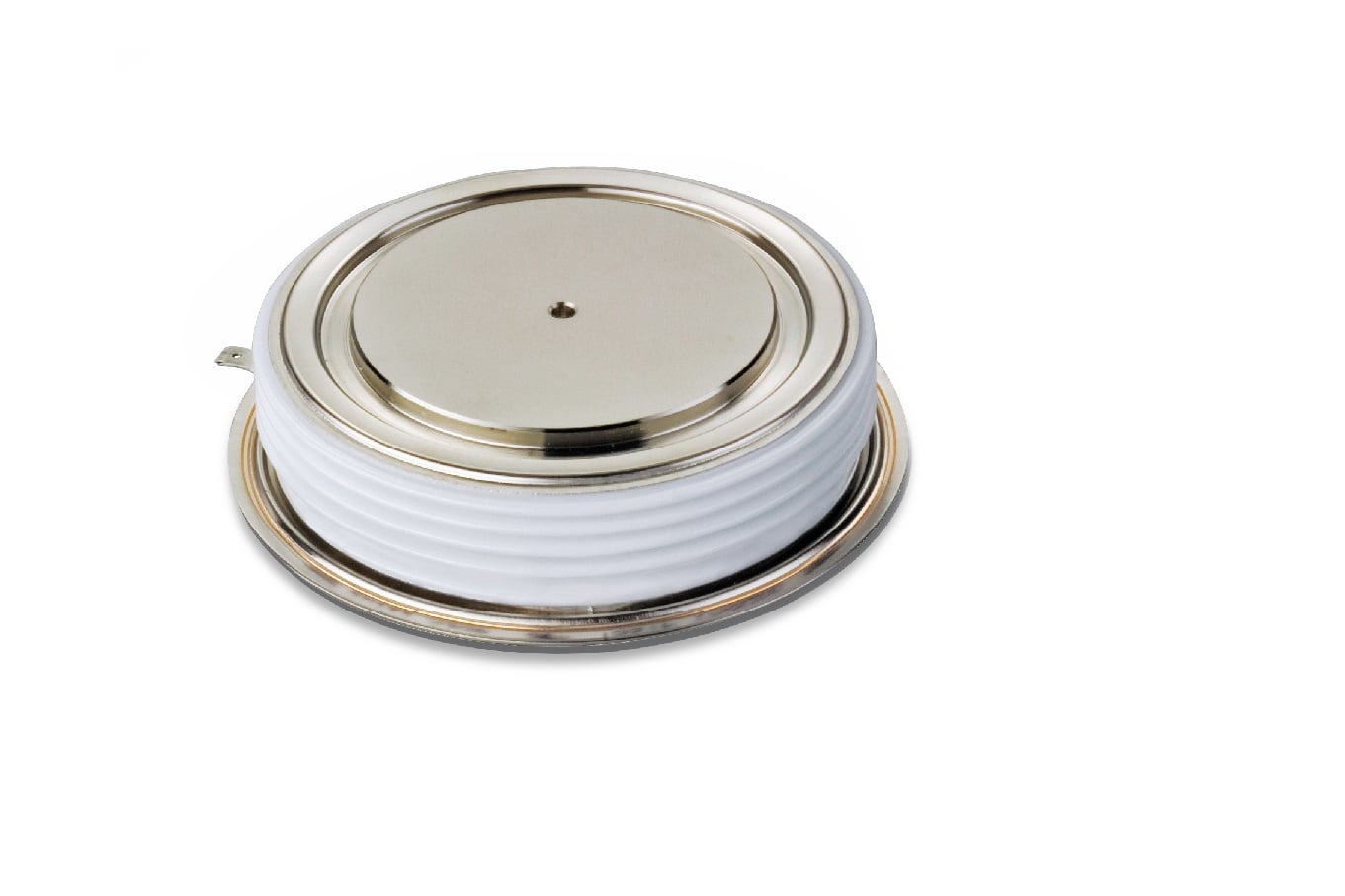

+	5STP33L2800	2800	3760	PCT	L D = 120 mmH = 26 mmd = 78 mm	49.5e3
+	5STP06D2800	2800	640	PCT	D D = 60 mmH = 26 mmd = 34 mm	6.9e3
+	5STP27Q8500	8500	2870	PCT	Q D = 150 mmH = 26 mmd = 100 mm	33.6e3

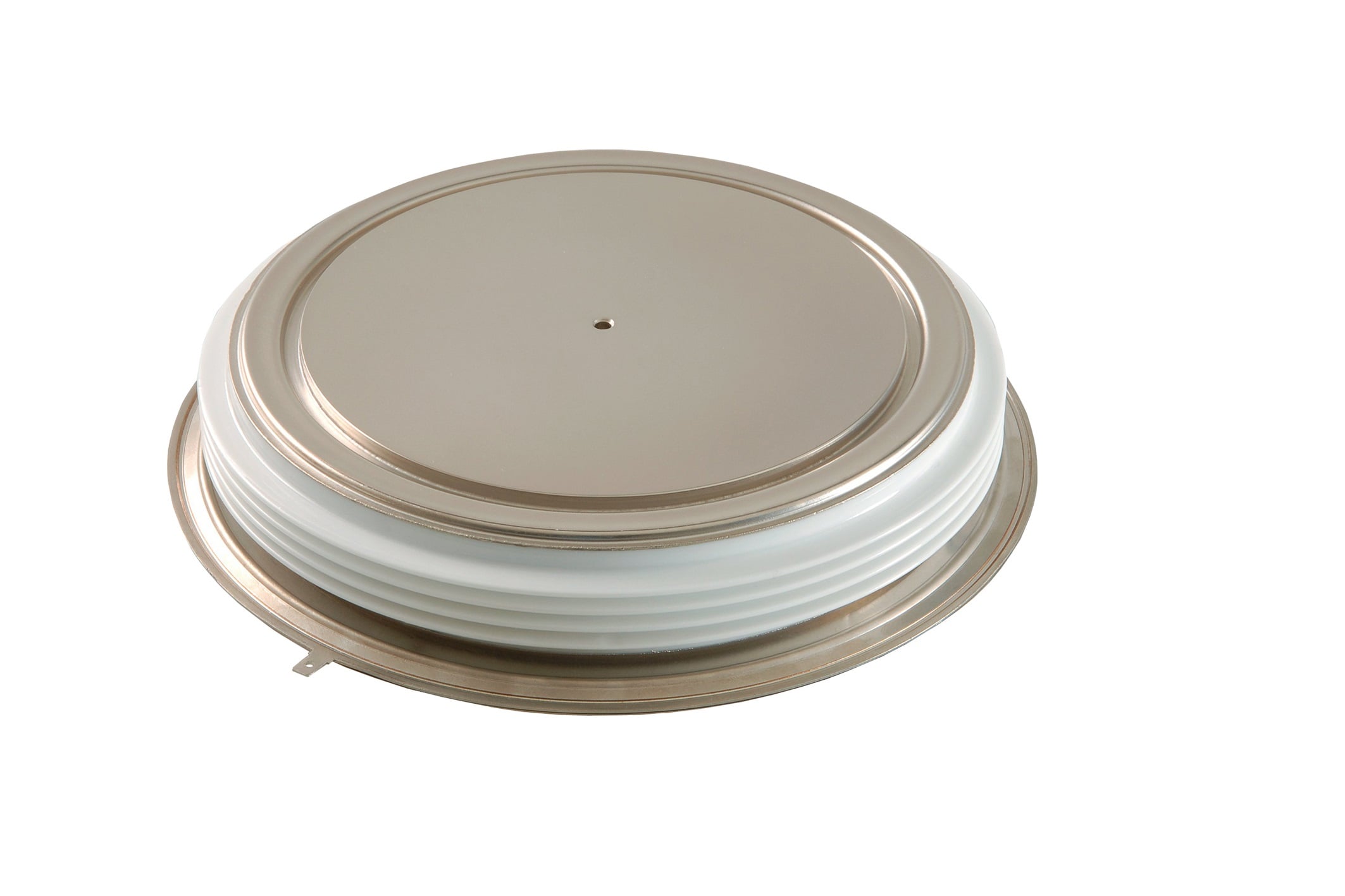

+	5STP48Y7200	7200	5040	PCT	Y D = 192 mmH = 35 mmd = 138 mm	75.4e3
+	5STP45Y8500	8500	4450	PCT	Y D = 192 mmH = 35 mmd = 138 mm	70.8e3
+	5STP40X6500	6500	3780	PCT	X D = 60 mmH = 35 mmd = 34 mm
+	5STP34Q5200	5200	3720	PCT	Q D = 150 mmH = 26 mmd = 100 mm	45.5e3
+	5STP25L5200	5200	2830	PCT	L D = 120 mmH = 26 mmd = 78 mm	37.0e3
+	5STP42U6500	6500	4300	PCT	U D = 172 mmH = 35 mmd = 110 mm	64.0e3
+	5STP52U5200	5200	5200	PCT	U D = 172 mmH = 35 mmd = 110 mm	78.0·103
+	5STP07D1800	1800	760	PCT	D D = 60 mmH = 26 mmd = 34 mm	7.1e3

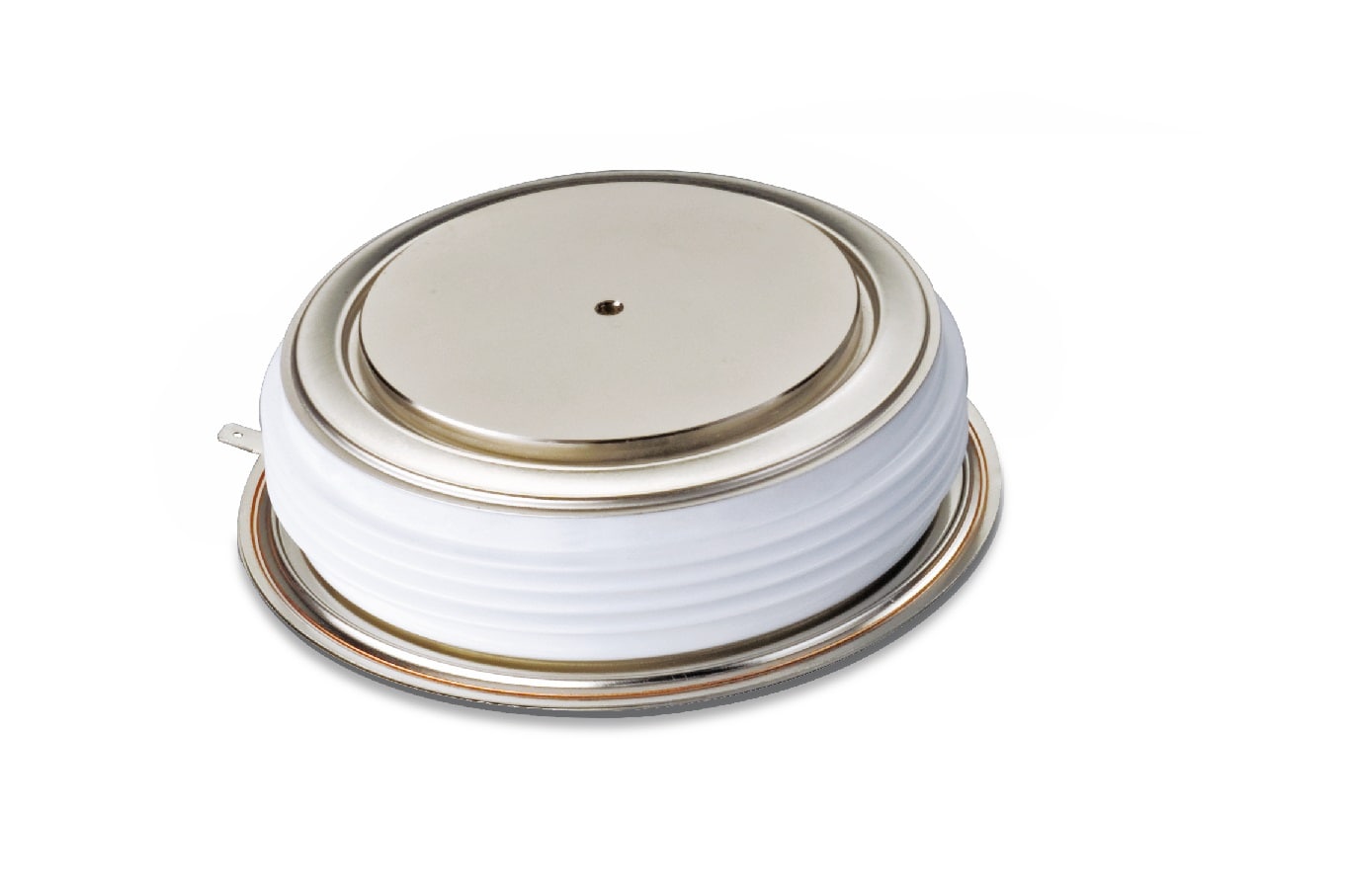

+	5STP38N4200	4200	4090	PCT	N D = 150 mmH = 35 mmd = 100 mm	51.0e3
+	5STP40N6500	6500	3780	PCT	N D = 150 mmH = 35 mmd = 100 mm
+	5STP18H4200	4200	2170	PCT	H D = 102 mmH = 26 mmd = 63 mm
+	5SEG0540T1820	1800	630	Thy / Diode Phase leg	60Pak W = 60 mmL = 150 mmH = 52 mmw = 60 mml = 124 mm
+	5STP17H5200	5200	1970	PCT	H D = 102 mmH = 26 mmd = 63 mm	24.5e3
+	5STP12F4200	4200	1190	PCT	F D = 75 mmH = 26 mmd = 47 mm	12.0e3
+	5STP03X6500	6500	340	PCT	X D = 60 mmH = 35 mmd = 34 mm	3.6e3
+	5STP26N6500	6500	2880	PCT	N D = 150 mmH = 35 mmd = 100 mm	40.0e3
+	5STP50Q1800	1800	6100	PCT	Q D = 150 mmH = 26 mmd = 100 mm	88.0e3
+	5STP12K6500	6500	1430	PCT	K D = 102 mmH = 35 mmd = 63 mm	19.4e3
+	5STP45N2800	2800	5250	PCT	N D = 150 mmH = 35 mmd = 100 mm	60.0e3
+	5STP34N5200	5200	3450	PCT	N D = 150 mmH = 35 mmd = 100 mm	45.5e3
+	5STP24H2800	2800	2780	PCT	H D = 102 mmH = 26 mmd = 63 mm	36.0e3
+	5STP27N8500	8500	2660	PCT	N D = 150 mmH = 35 mmd = 100 mm	33.6e3
+	5STP27H1800	1800	2940	PCT	H D = 102 mmH = 26 mmd = 63 mm
+	5STP03D6500	6500	390	PCT	D D = 60 mmH = 26 mmd = 34 mm	3600
+	5STP08F6500	6500	850	PCT	F D = 75 mmH = 26 mmd = 47 mm	9700
+	5STP38Q4200	4200	4420	PCT	Q D = 150 mmH = 26 mmd = 100 mm	51.0e3
+	5STP28L4200	4200	3290	PCT	L D = 120 mmH = 26 mmd = 78 mm	42.5e3

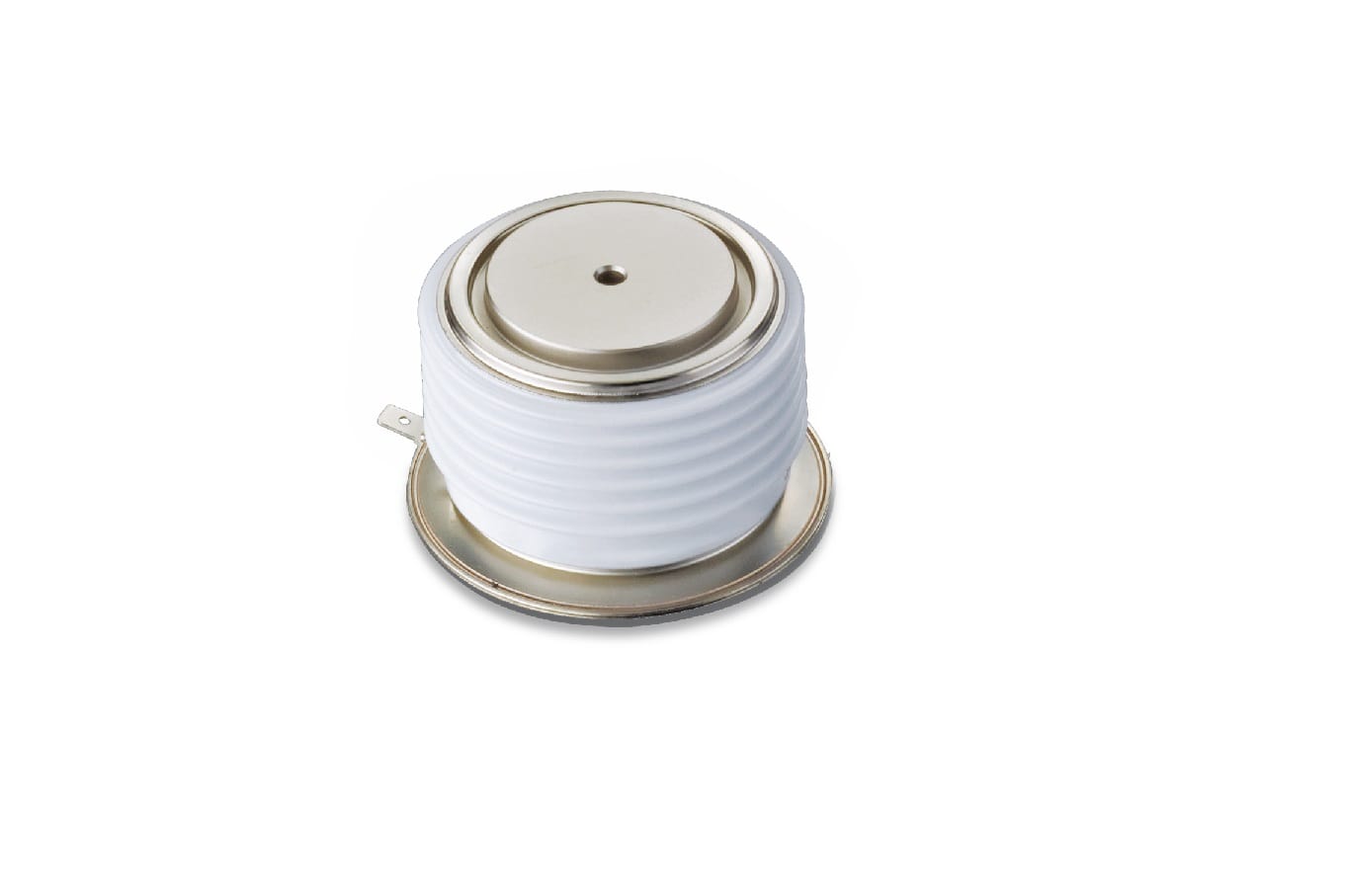

+	5STP08G6500	6500	730	PCT	G D = 75 mmH = 35 mmd = 47 mm	9.70e3

Select	Part Number	V_DRM	I_{T(AV)M TC1}	Configuration	Housing	V_DC	I_{TGQM VD1}	d_P

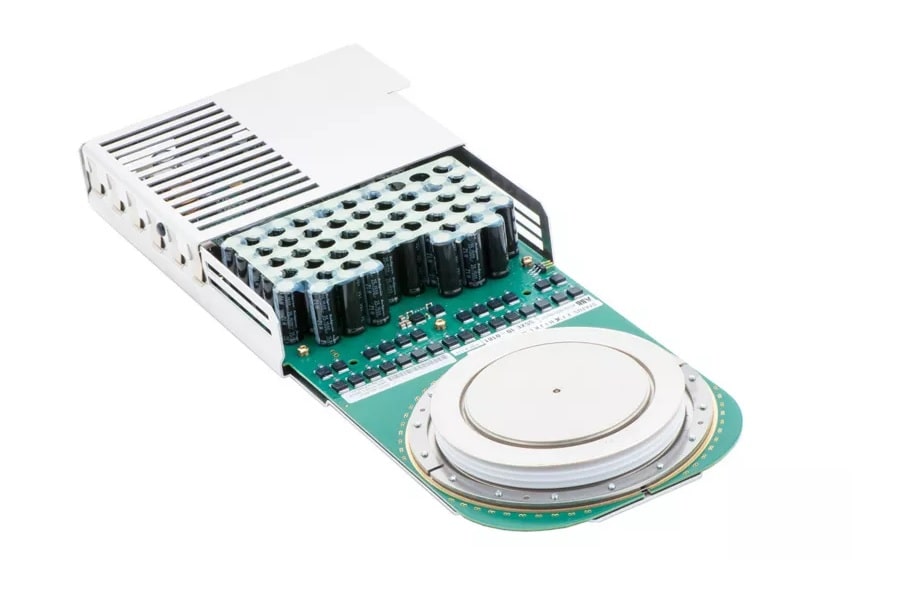

+	5SHY65L4522	4500	2320	Asym IGCT +T	L W = 173 mmL = 445 mmD = 120.5 mmH = 26 mmd = 85 mm	2800	6000	85e-3
+	5SHY55L4500	4500	1870	Asym IGCT +T	L W = 173 mmL = 445 mmD = 120.5 mmH = 26 mmd = 85 mm	2800	5000	85e-3
+	5SHY35L4522	4500	2100	Asym IGCT +T	L W = 173 mmL = 445 mmD = 120.5 mmH = 26 mmd = 85 mm	2800	4000	85e-3
+	5SHY50L5500	5500	1290	Asym IGCT +T	L W = 173 mmL = 445 mmD = 120.5 mmH = 26 mmd = 85 mm	3300	3600	85e-3
+	5SHY60L6500	6500	1900	Asym IGCT +T	L W = 173 mmL = 445 mmD = 120.5 mmH = 26 mmd = 85 mm	4000	6000	85e-3
+	5SHY45L4520	4500	1430	Asym IGCT +T	L W = 173 mmL = 445 mmD = 120.5 mmH = 26 mmd = 85 mm	2800	4500	85e-3
+	5SHY35L4520	4500	1700	Asym IGCT +T	L W = 173 mmL = 445 mmD = 120.5 mmH = 26 mmd = 85 mm	2800	4000	85e-3
+	5SHY65L4521	4500	2760	Asym IGCT +T	L W = 173 mmL = 445 mmD = 120.5 mmH = 26 mmd = 85 mm	2800	6500	85e-3
+	5SHX19L6020	5500	840	RC IGCT	L W = 173 mmL = 445 mmD = 120.5 mmH = 26 mmd = 85 mm	3300	1800	85e-3
+	5SHY42L6500	6500	1290	Asym IGCT +T	L W = 173 mmL = 445 mmD = 120.5 mmH = 26 mmd = 85 mm	4000	3800	85e-3

Select	Part Number	V_CES / V_RRM	I_C / I_F	Configuration	Housing	I_{FSM tp₁}

+	5SDF08H6005	5500	635	Diode SDF for IGCT	H1 D = 93.5 mmH = 26 mmd = 62.8 mm	15.5e3
+	5SDF05F4502	4500	435	Diode SDF for IGCT	F D = 75 mmH = 26 mmd = 47 mm	16e3

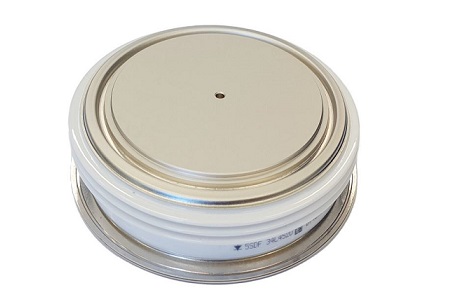

+	5SDF17L6510	6500	2380	Diode SDF for IGBT	L3 D = 120 mmH = 26 mmd = 85 mm	37300
+	5SDF34L4520	4500	2690	Diode SDF for IGCT	L3 D = 120 mmH = 26 mmd = 85 mm	40e3
+	5SDF04F6004	5500	380	Diode SDF for IGCT	F D = 75 mmH = 26 mmd = 47 mm	10e3
+	5SDF18H4520	4000	1850	Diode SDF for IGBT	H1 D = 93.5 mmH = 26 mmd = 62.8 mm	27000
+	5SDF10H4503	4500	1100	Diode SDF for IGCT	H1 D = 93.5 mmH = 26 mmd = 62.8 mm	20e3

Select	Part Number	V_RRM	I_{F(AV) T_C1}	Configuration	Housing

+	5SEG0540T1821	2200	889	Diode / Diode Phase leg C	60Pak W = 60 mmL = 150 mmH = 52 mmw = 60 mml = 124 mm
+	5SDD75Y8500	8500	6720	Diode SDD Rect	Y D = 192 mmH = 35 mmd = 143 mm

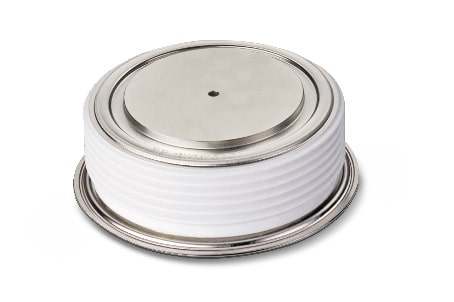

+	5SDD57N6500	6500	5850	Diode SDD Rect	N D = 150 mmH = 35 mmd = 100 mm
+	5SDD33L5500	5000	3500	Diode SDD Rect	L1 D = 120 mm H = 26 mm d = 78 mm

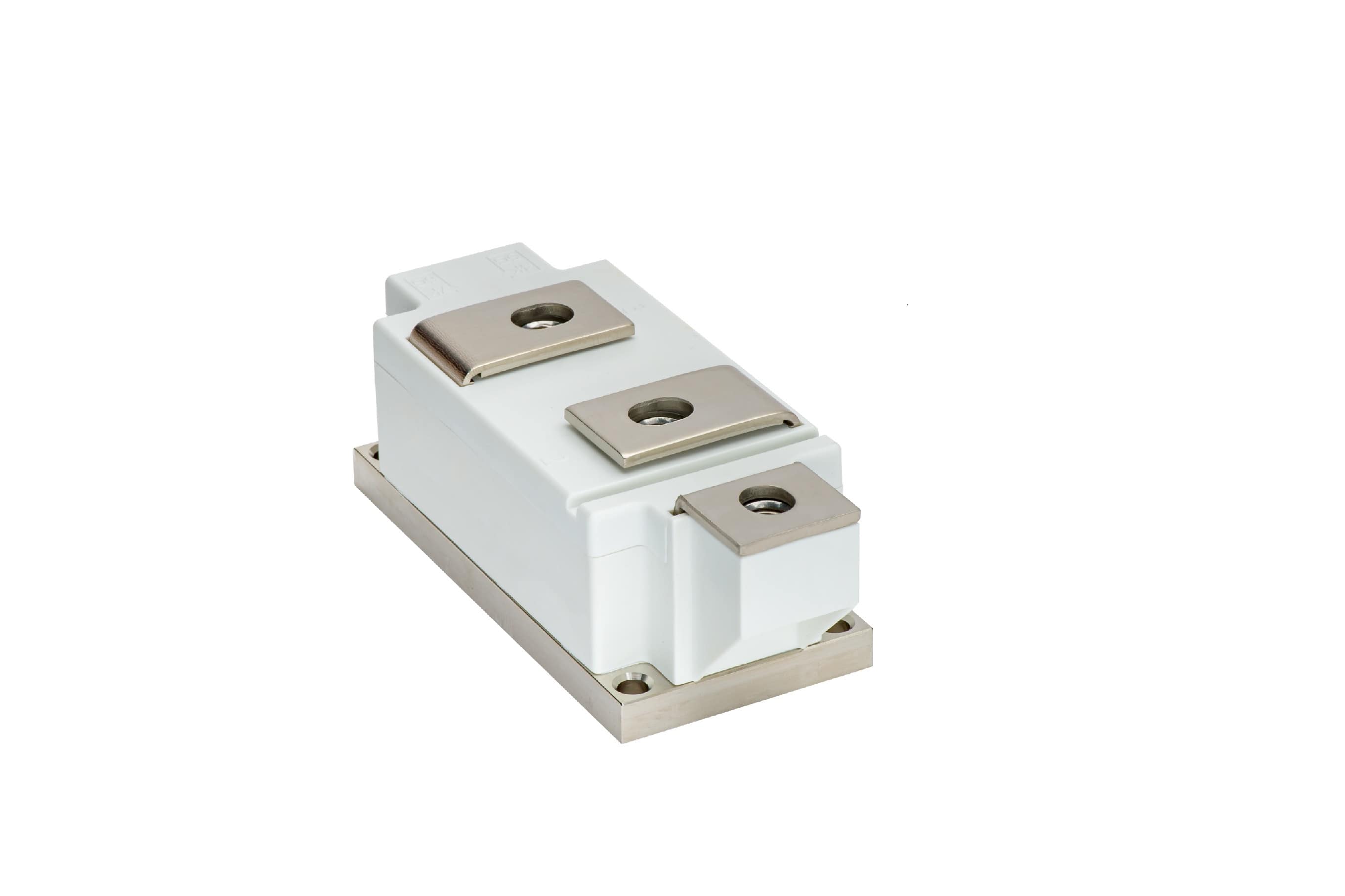

+	5SED0890T2260	2200	889	Diode / Diode Phase leg C	T D = 58.5 mmH = 20 mmd = 34 mm
+	5SDD60N2800	2000	6830	Diode SDD Rect	N D = 150 mmH = 35 mmd = 100 mm

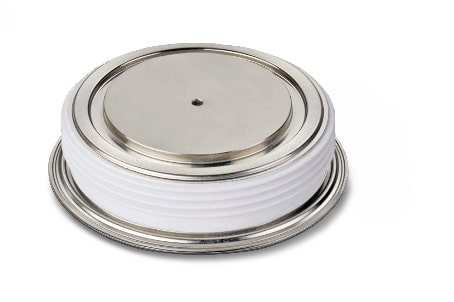

+	5SDD40H4000	4000	3847	Diode SDD Rect	H2 D = 102 mmH = 26 mmd = 63 mm

Select	Part Number	V_RRM	I_{F(AV) T_C1}	Configuration	Housing	I_{FSM t_p1}

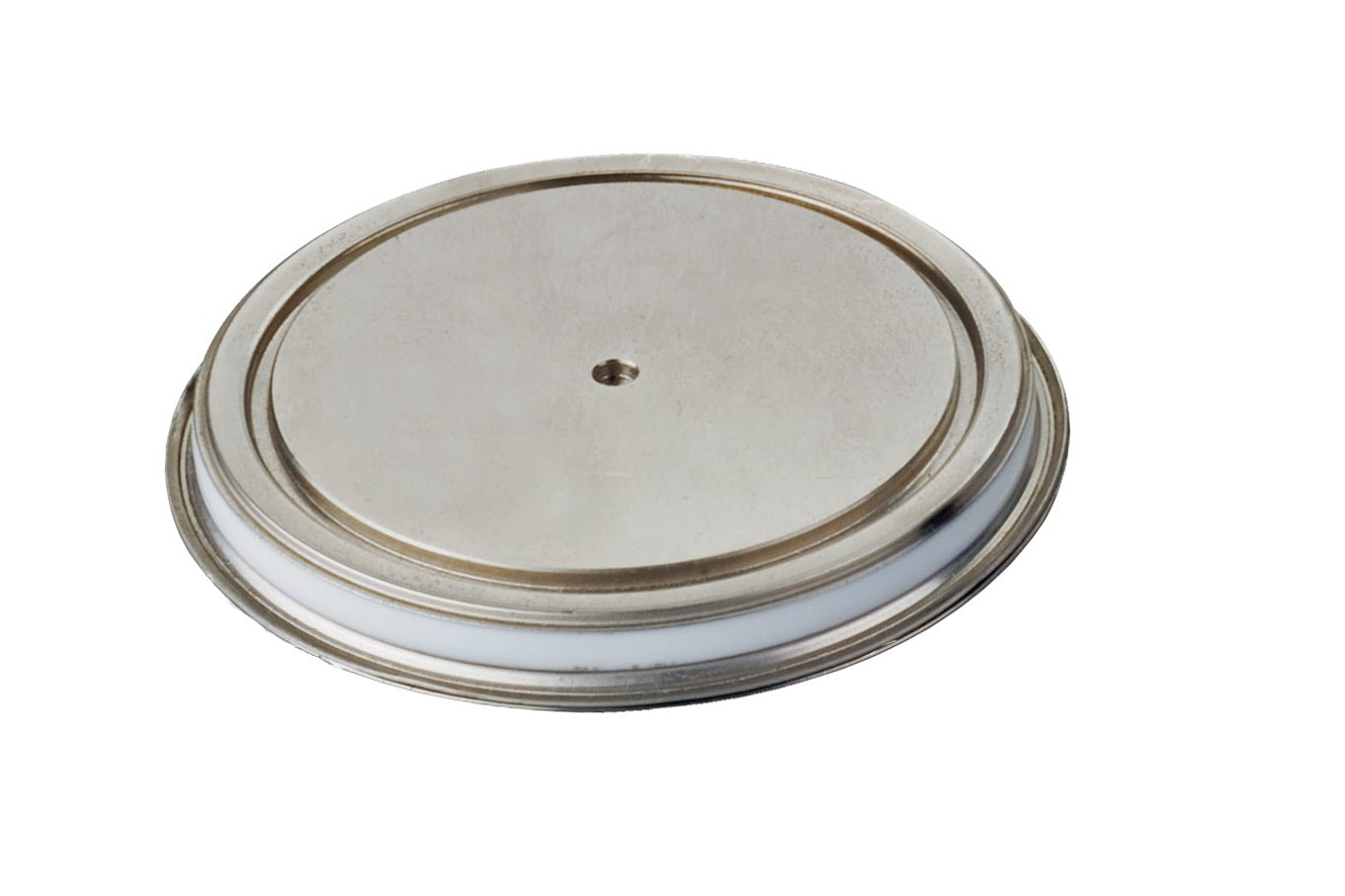

+	5SDD0120C0400	400	11350	Diode SDD Weld	C D = 75.5 mmH = 8 mmd = 57 mm	85000

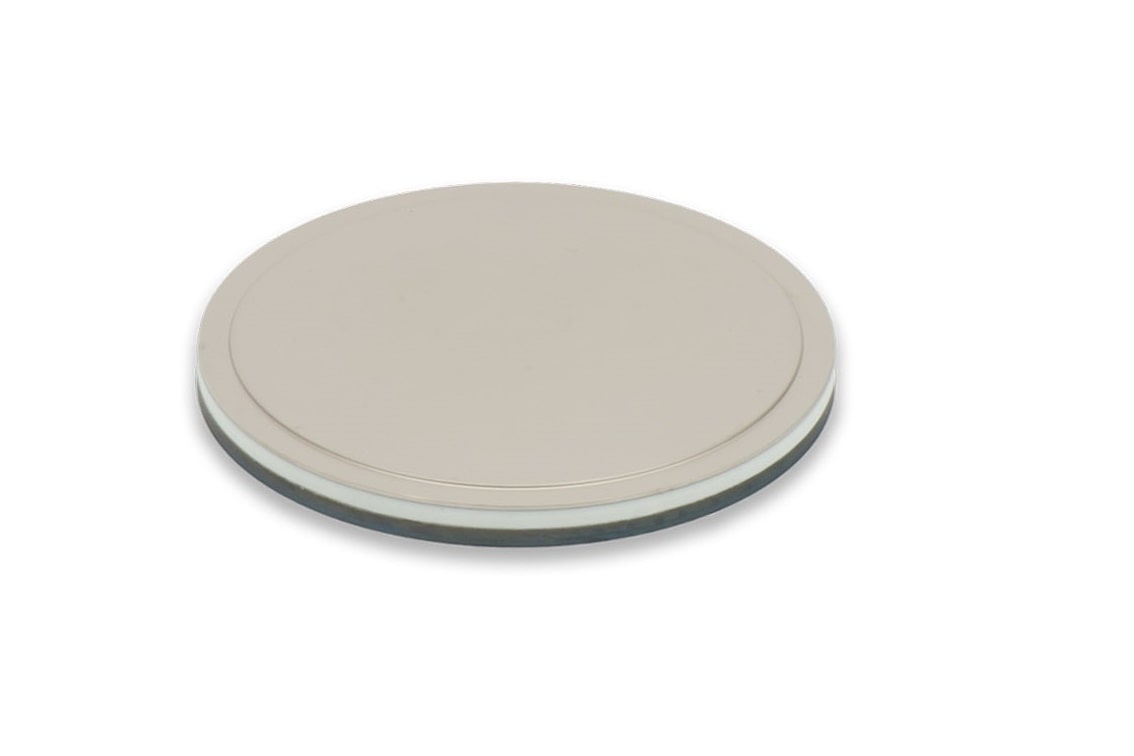

+	5SDD92Z0401	400	9244	Diode SDD Weld	Z1 D = 53 mmH = 5 mmd = 47 mm	64000
